The Scenario
You want team members to get notifications in Slack for certain alerts from your firewall. The alerts forwarded to Slack are defined in a filter (or multiple filters) on the firewall, tailored to the requirements of your organization. Examples include threat log entries with severity critical; wildfire submissions with verdict malicious; or configuration or system log entries of particular interest.
Using Slack with targeted notification from Palo Alto Networks firewalls provides a way to reduce alert fatigue while keeping your team informed about relevant critical alerts.
Prep work in Slack
In Slack you need an app, then in the app you are going to add a webhook. This gives you a webhook URL in a format like:
https://hooks.slack.com/services/T01HCxxxxxxxxxxxxxx/B01H6xxxxxxxx/Aj8j3J0Vxxxxxxxxxxxxxxxx
You need that webhook URL for the channel or channels you want to post in, and the app is tied to the channel.
See the link in the resources section for instructions about configuring Slack.
On the Palo Alto Networks firewall
High level steps on the firewall for notification for Wildfire malicious events:
1. Setup the HTTP server profile
2. Configure a log forwarding profile
3. Add the log forwarding profile to security policies
4. Commit your changes
5. Revise formatting and query as needed until it is what you want
Step by step on the firewall for Wildfire malicious event notification:
- Setup the HTTP server profile. Go to Device > Server Profiles > HTTP and click Add.
- Use the dialog to create a new profile named Slack Post
- Click Add at bottom to add a new server, using the info below:
Name: hooks.slack.com
Address: hooks.slack.com
Protocol: HTTPS
Port 443
TLS 1.2
Certificate profile: none
HTTP method: POST

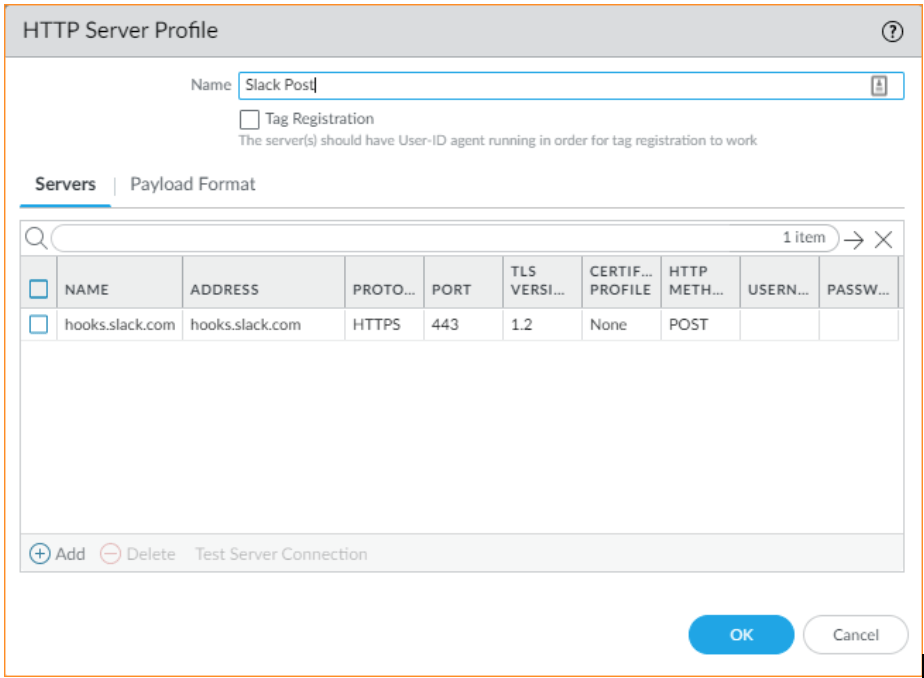

Here is what it looks like once that profile is created and the server is added:
- Next, go to the Payload Format tab
For Wildfire log, click on Wildfire and use these settings
Name: Slack Wildfire log post
URI Format: /services/the rest of your webhook URL from Slack
HTTP Headers:
Headers: content-type
Value: application/json
No Parameters
For Payload, start with what is shown below, and modify as needed after testing, depending on your environment. Use the management IP address for your firewall in place of 192.168.1.179 shown below.
{ “attachments”: [ {“text”: “$time_generated on $device_name <https://192.168.1.179> which reports severity:$severity verdict:$category event:$threat_name user:$srcuser host:$src_host on IP addr:$src”
} ] }
Press OK twice to save changes and exit config dialog.
- Open the HTTP Server profile, then on the second tab, go into the Slack Wildfire Log post and use the Send Test Log button to see if it can submit to Slack. You should see it in your Slack channel.
- If you do not see in your Slack channel check the traffic log to see if you have denied traffic from the firewall management interface (by default, or from specified interface if using service routes). Hint: view the traffic log using the filter “( app eq slack-base ) and ( addr.src in <your firewall mgmt. port IP Address> )” to see those submissions.
- Once the test post shows in Slack, proceed with next step.
- Configure a Log forwarding profile. Go to Objects > Log Forwarding, create new or edit an existing profile.
- In the profile, click Add at bottom and use these settings:
Name: Wildfire log malicious or phishing <or whatever is descriptive for your setup>
Description: forward any wildfire events that are malicious or phishing
Log type: wildfire
Filter: (verdict eq malicious) or (verdict eq phishing) <or whatever is appropriate for your organization>
Forward method: Slack Post
Click OK twice to save changes
- Add the log forward profile to Security Policies if this is a new Log Forwarding profile
- Under Policies > Security open each security policy

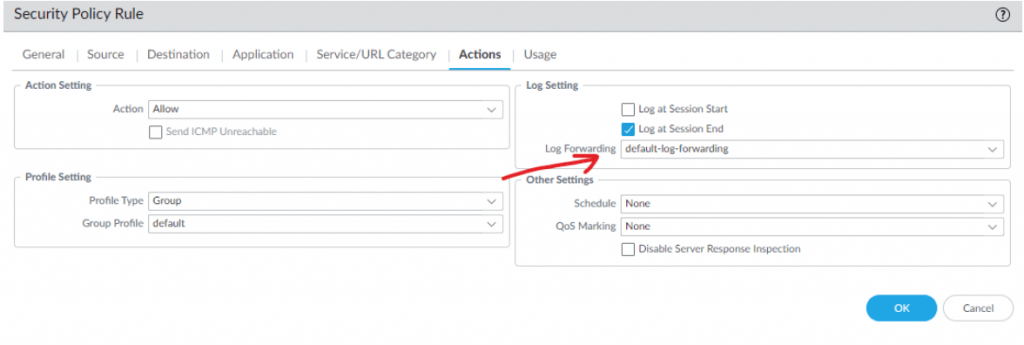

- On the Actions tab, select the log forwarding profile you just created
- If required by your organizational policies add an audit comment on the General tab
- Click OK to save changes
- Commit your changes
- Test and revise as needed to generate notifications for the events you want to see in Slack, and to provide useful information in the body of the notification.
The example above is for notification from the Wildfire log. If you want to get notified for Threat log events you would use the same process with different payload formatting. If you want to get notified for configuration or system events (e.g., HA failover, Commit) you would change step 2 above. Instead of going to Objects > Log Forwarding, you would go to Device > Log settings and configure a filter for the interesting events to be sent to the Server Profile created in step 1. For configuration and system log forwarding you do not have to do step 3 (attach forwarding profile to a security policy). You still would commit (step 4) and test/revise (step 5).
Next Steps
If you want to implement this in your environment and would be more comfortable having someone with experience help you in the process, contact your Sun Management account rep to schedule one of our certified Palo Alto Networks engineers to assist with setting up notification from the firewalls into Slack.
If you want to test this on your own and do not have access to a lab environment to do so, contact your Sun Management account rep to get pricing on a lab bundle. The PA-220 and VM-50 appliances are excellent platforms for testing things such as this and there are specific part numbers for lab equipment that are more heavily discounted than the same appliance for use in production.
Sun Management
Sun Management is a Value Added Reseller (VAR) focusing on Network and Internetwork Security Requirements. We work primarily in the Mid Atlantic area: Maryland (MD), Virginia (VA), District of Columbia (DC), West Virginia (WV), Delaware (DE) and Pennsylvania (PA). Our credentials include Palo Alto Networks Services Provider, Palo Alto Networks Certified Training Partner, and Palo Alto Networks Certified Managed Security Service Provider (MSSP) using CORTEX XSOAR in a multi-tenant environment.
We address requirements concerning Network Detection and Response (NDR); internal and external TLS and SSL requirements for complete data visibility; End Point Detection and Response (EDR); Gramm Leach Bliley Act, HIPPA, Sarbanes Oaxley and PCI DSS; penetration testing and firewall optimization; and Data Protection by tracking all Data Flows within the network, across applications, between users/servers and in the cloud. Contact us at (888) 773-9422 to setup a POC or if you just want more information.
Resource Links
https://slack.com/help/articles/115005265063-Incoming-webhooks-for-Slack
https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClFfCAK
